Products

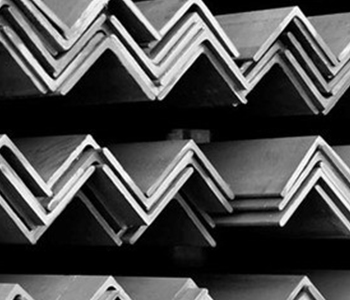

M.S Angle

Ambica alloys supplies a wide range of mild steel (MS) Angles, M.S Angle are used for manufacturing of truck, trailers, EOT cranes and gantry, escalators and elevators, ship building, factory sheds, bus body, transmission tower, boilers, agricultural equipment and construction of bridges and many more fabrication and engineering industries.

Weight Tolerance: Equal Angle Thickness more than 3mm = + 5% and -3% on standard weight

Dimension: Equal Angle more than 45mm and upto 100mm = +2mm and -2mm each leg length two leg length should be 75% by 1 degree that means both side of leg length should be equal by 0.5mm

Product Range

Size weight Kg/ Mtr
50x50x5mm 3.8
50x50x6mm 4.5
55x55x5mm 4.1
55x55x6mm 4.9
60x60x4mm 3.7
60x60x5mm 4.5
60x60x6mm 5.4
65x65x5mm 4.9
65x65x6mm 5.8
65x65x8mm 7.7
65x65x10mm 9.42
70x70x5mm 5.3
70x70x6mm 6.3
75x75x5mm 5.7
75x75x6mm 6.8
75x75x8mm 8.9
75x75x10mm 11
75x75x12mm 13
80x80x6mm 7.3
80x80x8mm 9.6
80x80x10mm 11.8
90x90x6mm 8.2
90x90x8mm 10.8
90x90x10mm 13.4
90x90x12mm 15.8
100x100x6mm 9.2
100x100x8mm 12.1
100x100x10mm 14.9
100x100x12mm 17.7
110x110x8mm 13.4
110x110x10mm 16.5
110x110x12mm 19.6
110x110x16mm 25.7
130x130x8mm 15.9
130x130x10mm 19.7
130x130x12mm 23.5

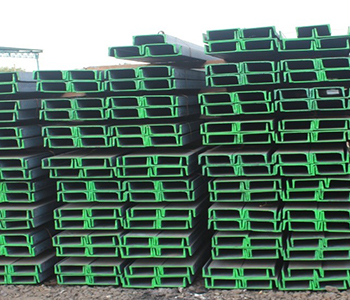

M.S Channel

Ambica alloys supplies a wide range of mild steel (MS) Channels are used for manufacturing of truck-trailers, agriculture equipment, conveyors, trippers, generators frame, machined parking system and many more engineering industries.

Depth: 0 – 200mm: ∓ 2.5mm

Width: 0 -100mm: ∓ 2mm

Weight: ∓ 2.5%

Product Range

Size weight Kg/ Mtr
75x40mm 7.14
100x50mm 9.56
125x65mm 13.1
150x75mm 16.8
175x85mm 19.6
200x75mm 22.3

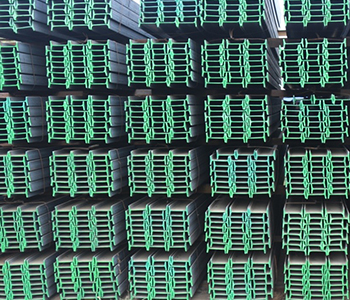

M.S Beam

Ambica alloys supplies a wide range of mild steel (MS) I Beams. MS I Beams are used for manufacturing of truck-trailers, EOT Cranes, factory sheds, conveyors, boilers, agricultural equipment and many more engineering industry.

Depth: 0 – 200mm: ∓ 3mm, -2mm & 200 – 400mm: ∓ 3mm

Width: 0 – 100mm: ∓ 2mm & 100 -125mm: ∓ 2.5mm

Weight: ∓ 2.5%

Product Range

Size weight Kg/ Mtr
100x50mm 8
125x70mm 13.2
150x75mm 15
175x85mm 19.6
200x100mm 25.4
250x125mm 37.3
300x140mm 46.1
